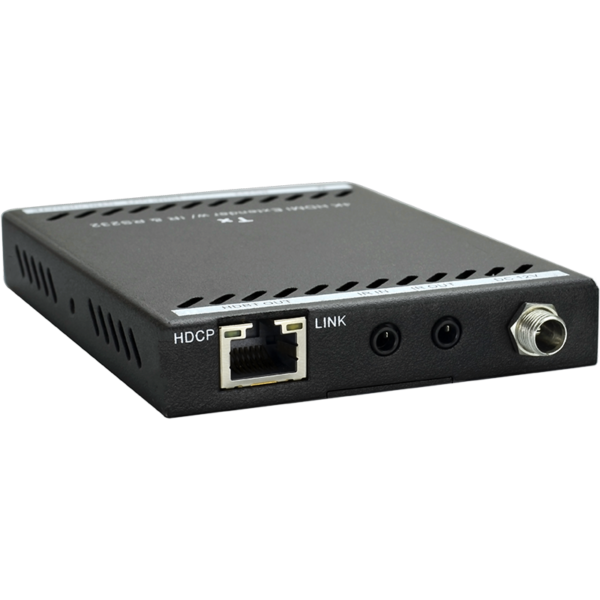

4K HDMI Extender w/IR &RS232 AVS-EXT4KPOC
This Audio Visual Solutions AVS-EXT4KPOC is an HDBaseT Extender set consist of transmitter (TX) and receiver (RX). It distributes HDMI signal via CAT5e/CAT6a cable at 70m/PoC, and enables IR and RS232 pass-through to control local source device from remote or far-end display.
4K HDMI Extender Features
- Supports HDMI1.4 & HDCP2.2.
- Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p.
- Supports bi-directional IR and RS232 pass-through for long-distance control.
- Supports bi-directional PoC for simplified wiring.
- Supports CEC.
- Features DIP switcher for choosing Control or Update mode.
4K HDMI Extender Package List
- 1 x Transmitter (TX)
- 1 x Receiver (RX)
- 2 x TX Mounting Ears with 2 Screws
- 2 x RX Mounting Ears with 2 Screws
- 4 x TX Rubber Feet
- 4 x RX Rubber Feet
- 1 x Power Adaptor (12VDC, 1A)
- 1 x User Manual
① Power LED Illuminates red when power is applied.
② RS232 Euroblock/Phoenix connector for connecting an RS232 data device.
③ HDMI IN (TX) HDMI port for connecting the video source device (e.g. Blu-ray DVD)
HDMI OUT (RX)HDMI port for connecting the video display.
④ CTRL/UPDATE Switch for determining the behavior of the RS232 connection.
When in the CTRL position, it serves as an RS232 serial extender.
When in the UPDATE position, it allows you to update the Valens IC program by connecting to a PC and running the batch file.

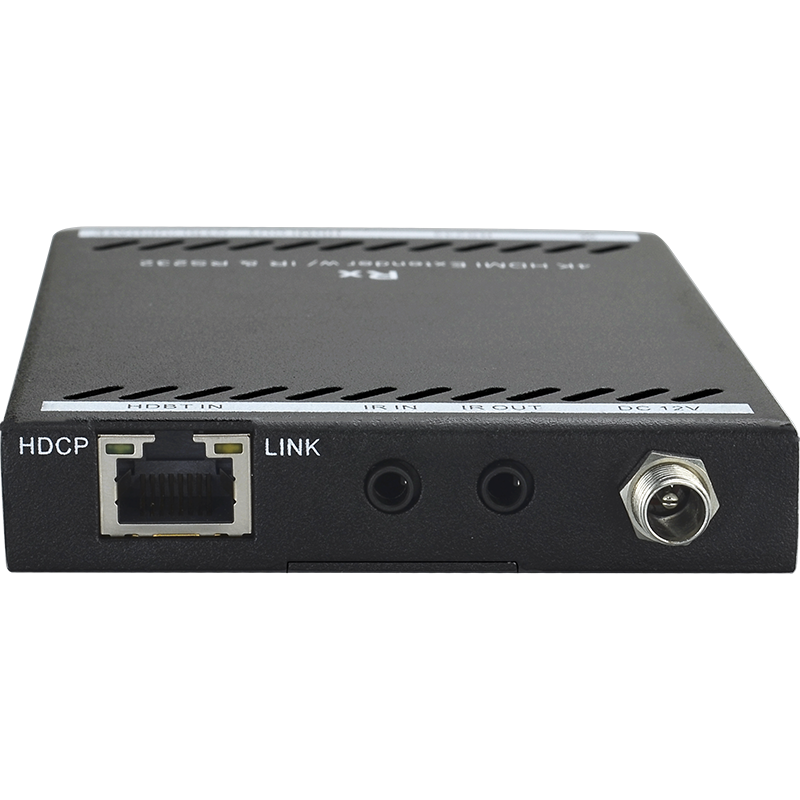

⑤ HDBT OUT (TX) RJ45 jack for connecting the Cat5e/6 cable to the Receiver.
HDBT IN (RX) RJ45 jack for connecting the Cat5e/6 cable to the Transmitter.
⑥ IR IN 3.5mm jack for connecting an IR Receiver (not included).
⑦ IR OUT 3.5mm jack for connecting an IR Emitter (not included).
⑧ DC 12V DC barrel connector for connecting the included AC power adaptor.
4K HDMI Extender Specifications
IR IN, IR OUT, RS232
IR IN, IR OUT, RS232
Maximum Video Resolution
1080p signal to 70m, 4K signal to 40m
HDMI1.4 with HDCP2.2
-10 ℃~ 50℃
0% ~ 90%
Input Power: 12VDC 1A or Power over Cable (PoC);
AC Adaptor Input Power: 100~240VAC, 50/60Hz
106mm x 16mm x 84mm
Net Weight (g)
