HDCP CONVERTER 2.2 TO 1.4

£25.00

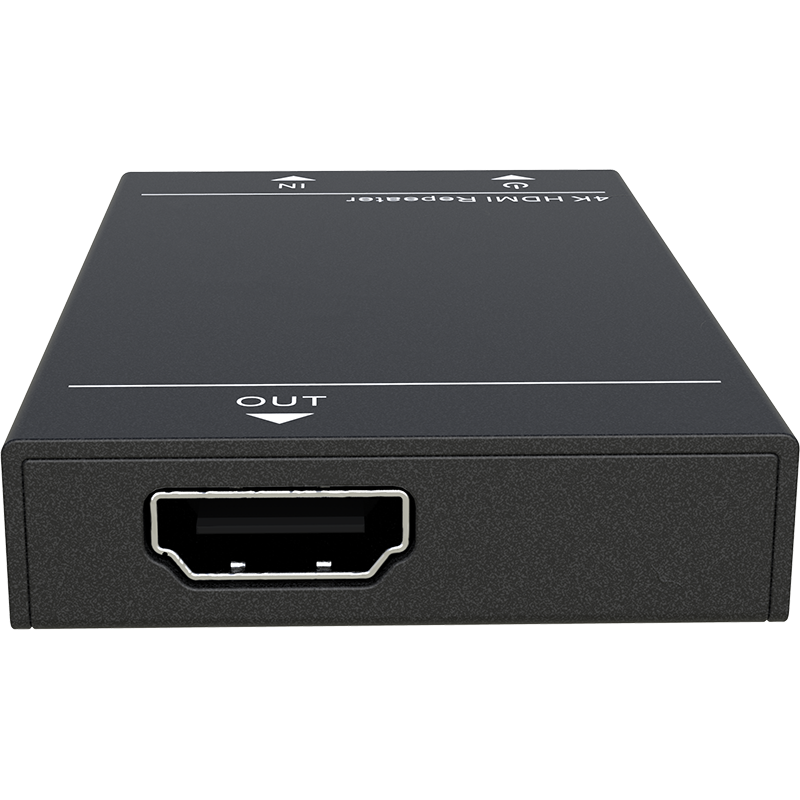

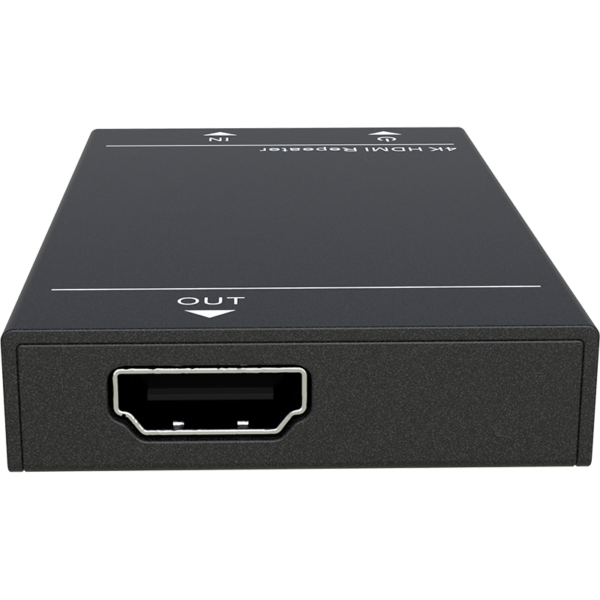

The Audio visual Solutions AVS C2214 is an ultra-thin HDMI signal manager. It is designed to enhance the compatibility between HDMI sources and displays to match more display device. The transmission of 4k×[email protected] (max) signal from source to display is up to 15m. Beside straight-through HDMI transmission, the EDID bypass function ensures the best resolution of displays. No need of any external power supply, simplifying the installation and operation.

99 in stock

SKU: AVS-C2214 Categories: , ,

Description

HDCP Converter 2.2 to 1.4 – AVS

The Audio visual Solutions AVS C2214 is an ultra-thin HDMI signal manager. It is designed to enhance the compatibility between HDMI sources and displays to match more display device. The transmission of 4k×[email protected] (max) signal from source to display is up to 15m. Beside straight-through HDMI transmission, the EDID bypass function ensures the best resolution of displays. No need of any external power supply, simplifying the installation and operation.

Audio visual Solutions AVS C2214 Feature

  • Input supports HDCP2.2.
  • Supports EDID bypass and auto input resolution detection, make sure the best resolution of display device.
  • The transmission of [email protected] 4:2:0 signal from source to display is up to 15m.
  • No need of any external power supply, simplifying the installation and operation.

PANEL DESCRIPTION

hdcp conver 2.2 ro 1.4 panel descrioption

① Power LED: GREEN when powered on
② IN: Connect with HDMI source
③ OUT: Connect with HDMI display

AVS C2214 System Diagram

HDCP Converter 2.2 to 1.4

Audio visual Solutions AVS C2214Package Content

  • 1 x AVS-C2214
  • 1 x Velcro Tape
  • 1  x User Manual

Specification

Input & Output

Input

(1) HDMI

Input Connector

(1) 19-pin type-A female HDMI

Output

(1) HDMI

Output Connector

(1) 19-pin type-A female HDMI

General

Transmission Distance

Input≤10m; Output≤5m

HDCP Standard

Input supports HDCP2.2

EDID Management

EDID pass-through

Bandwidth

10.2Gbps

Power Consumption

1W

Work Temperature

-10~55℃

Relative Humility

10%-90%

Dimensions (W*H*D)

45.5mm x 12mm x 75mm

Weight

50g
