HDMI EXTENDER OVER CAT5E/6 1080P AVS-EXT60

£45.00

The AVS-EXT60 HDMI extender extends HDMI signal between Transmitter and Receiver over CATx cable. It supports [email protected] video signals up to 55m including embedded multi-channel audio and HDCP1.4.
Built-in EDID make this product compatible with most display and source device, to ensure HDMI transmission.
Advanced power design (PoC) allows this product to be powered at Transmitter, and only one power supply is required. In addition, the AVS-EXT60 send/receive IR signals each other over the same CATx cable with IR pass through.

Clear
SKU: N/A Categories: , ,

Description

HDMI Extender over Cat5e/6 1080p AVS-EXT60

The AVS-EXT60 HDMI extender extends HDMI signal between Transmitter and Receiver over CATx cable. It supports [email protected] video signals up to 55m including embedded multi-channel audio and HDCP1.4.
Built-in EDID make this product compatible with most display and source device, to ensure HDMI transmission.
Advanced power design (PoC) allows this product to be powered at Transmitter, and only one power supply is required. In addition, the AVS-EXT60 send/receive IR signals each other over the same CATx cable with IR pass through.

Features

  •  Supports HDMI1.4, HDCP1.4 compliant.
  •  Supports built-in EDID to ensure HDMI signals transmission from source to display.
  •  The transmission of [email protected] (max) signal is up to 55m.
  •  Supports bidirectional IR pass-through.
  •  Supports PoC, the Receiver can be powered via Transmitter.

Package Contents

  •  1 x AVS-EXT60T
  •  1 x AVS-EXT60R
  •  1 x Power Adaptor (5VDC 1A)
  •  2 x Velcro Tape
  •  1 x IR Receiver (5V)
  •  1 x IR Emitter (5V)
  •  1 x User Manual

Panel Description

Transmitter (TX)

① CAT OUT: RJ45 connector with Green& Yellow indicators. Connect to Receiver over CATx cable.
The Green indicator lights up when powered on.
The Yellow indicator lights up when linked successfully between Transmitter and Receiver.
② IR IN: Connect with IR Receiver.
③ IR OUT: Connect with IR Emitter.
④ DC 5V: Micro USB, connect to the power adaptor.
⑤ HDMI IN: Connect to HDMI source.
⑥ HDMI OUT: HDMI loop output, connect to display.
⑦ RESET: Reboot.

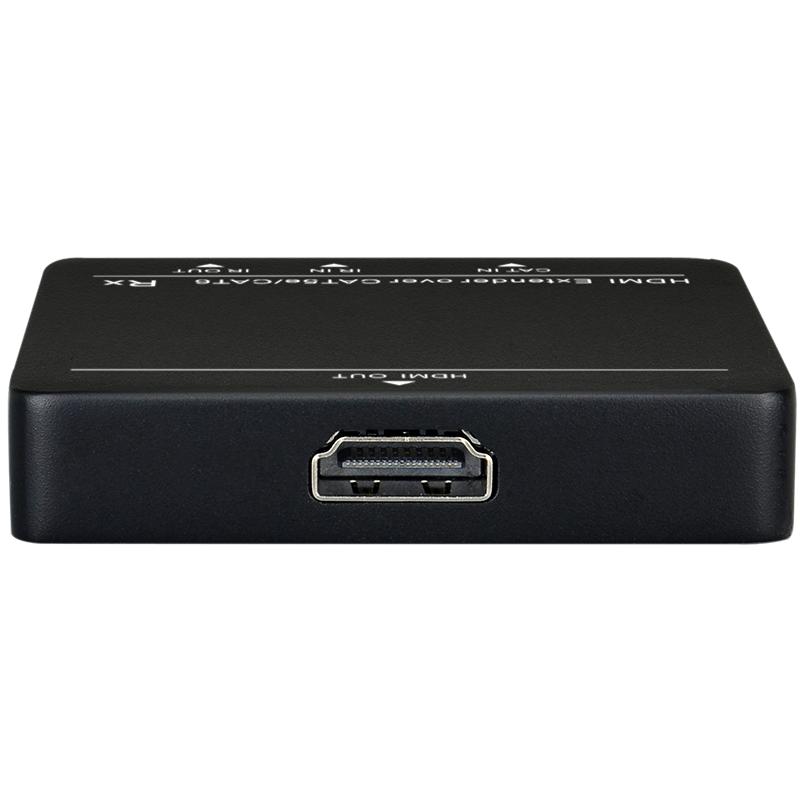

Receiver (RX)

① CAT IN: RJ45 connector with Green& Yellow indicators. Connect to Transmitter over CATx cable.
② IR IN: Connect with IR Receiver.
③ IR OUT: Connect with IR Emitter.
④ HDMI OUT: Connect to display.
⑤ EQ SETTING: After the system is connected, press this button three to six times repeatedly until the best image output. When the cable, source, or display is changed, or reset the output resolution, it is need to press this button repeatedly to ensure the best image.





Specifications



Transmitter

Receiver

Input

(1) HDMI

(1) CAT

Input Connector

(1) 19-pin type-A female HDMI

(1) RJ45

Output

(1) HDMI; (1) CAT

(1) HDMI

Output Connector

(1) 19-pin type-A female HDMI;  (1) RJ45

(1) 19-pin type-A female HDMI

Control

(1) IR IN; (1) IR OUT

(1) IR IN; (1) IR OUT

Control Connector

(2) 3.5mm mini jacks

(2) 3.5mm mini jacks

General

Transmission Distance

[email protected]≤55m

HDMI Standard

HDMI1.4, HDCP1.4 compliant

EDID Management

Built-in EDID

Power Supply

Input: 100VAC~240VAC, 50/60Hz; Output: 5VDC 1A

Power Consumption

4W (Max)

Work Temperature

-10~55℃

Relative Humility

10%-90%

Dimensions (W*H*D)

66mm x 16.8 mm x66 mm

Weight

Transmitter: 36g; Receiver: 38g;

Additional information

WeightN/A
DimensionsN/A
